Dokio 18V 100/160/200/300 W Portable Foldable Solar Panel with 12V Controller to Charge Battery suitable for Camp
Regular price
$189.23
Sale price
$189.23
Regular price
$0.00
Unit price
Dokio 18V 100/160/200/300 W Portable Foldable Solar Panel with 12V Controller to Charge Battery suitable for Camp
Product description
Shipping & Return
SPECIFICATIONS
Brand Name: DOKIO
Certification: CE
Flexible Solar Panel: Yes
Foldable Solar Panel: Yes
High-concerned chemical: None
Material: Monocrystalline Silicon
Max. Power: 200W±3%
Model Number: FFSP-200M
Nominal Capacity: None
Number of Cells: 36
Number of Panels: 1
Origin: Mainland China
Type: Solar Panel
is_customized: Yes
Dear customer, due to product upgrade,
the size and weight of the product you receive may be different.

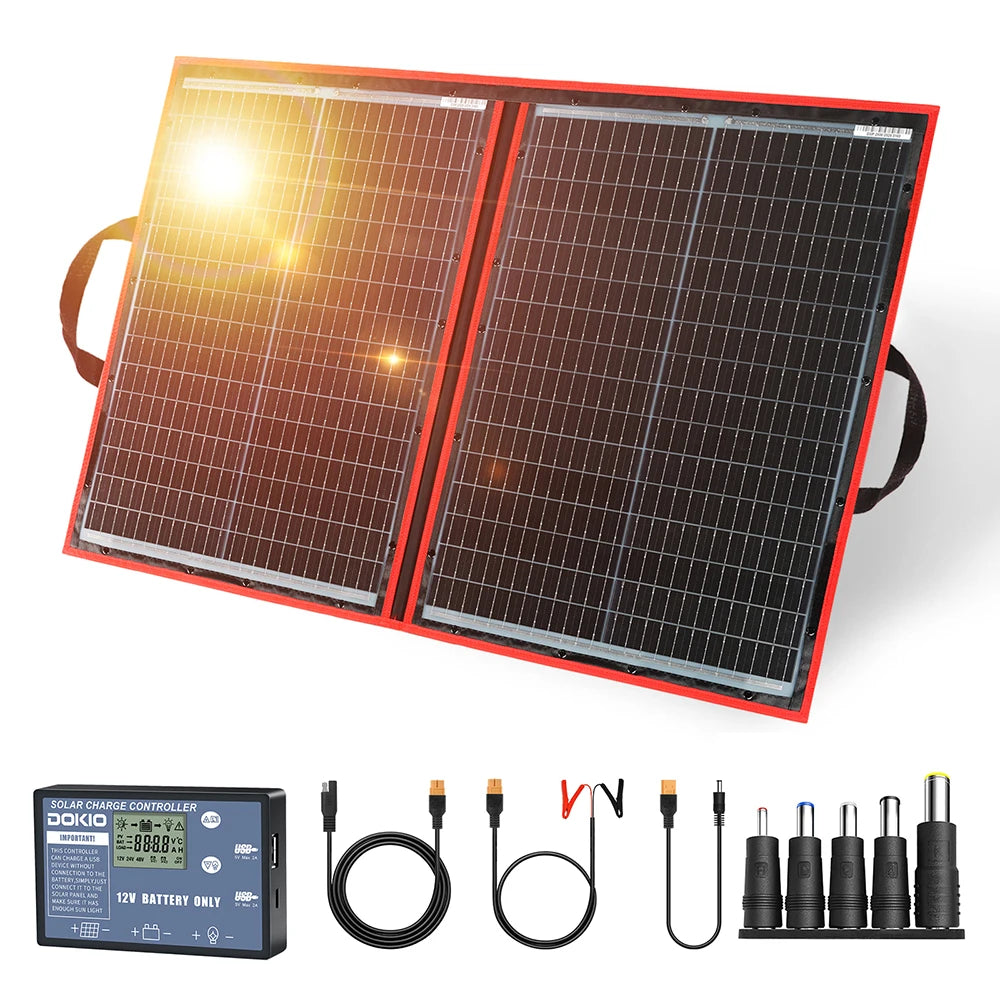

Model:FFSP-100M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.1A
Open-Circuit Voltage (Voc):20.5V
Short-Circuit Current (Isc):6.35A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V

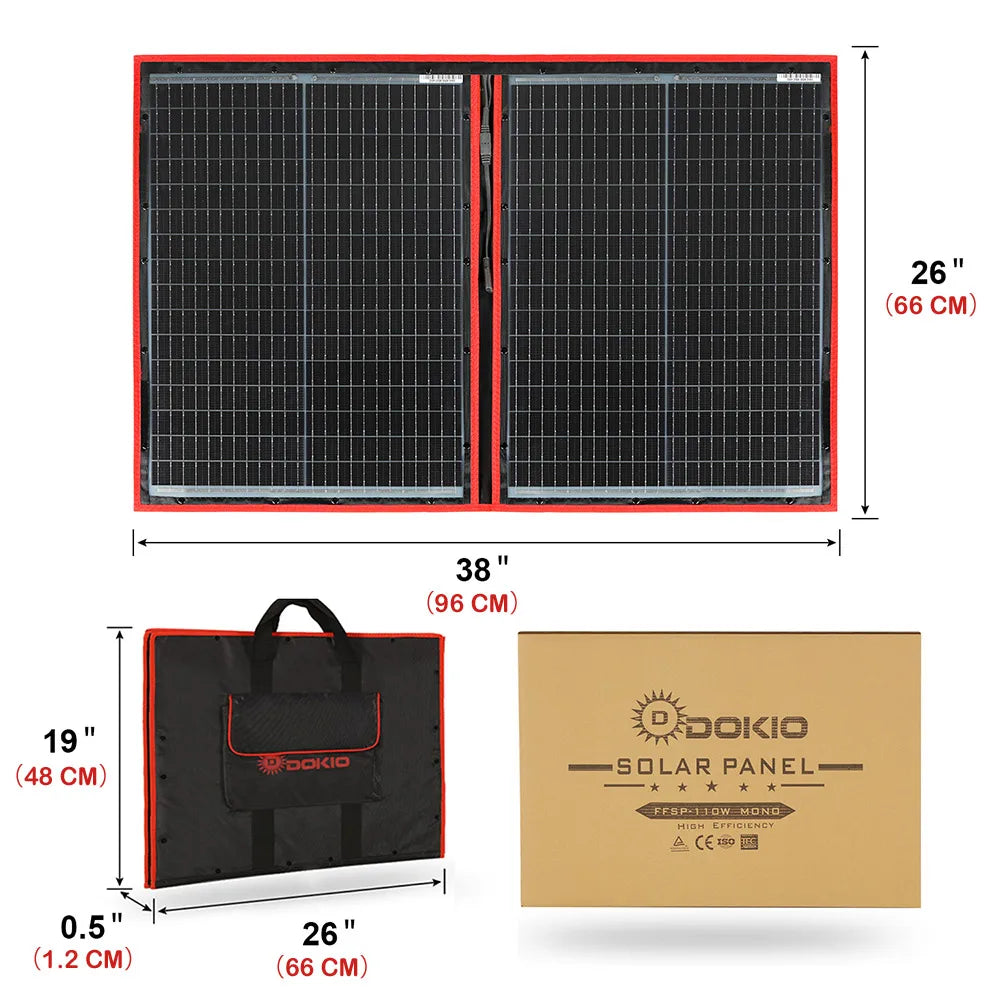

Foldable Dimension:48*66*1.2 cm
Expansion Dimension:96*66*0.6 cm
Net Weight: 2.4 kg
Package Weight:3.4kg
Package Size:77*50.5*4 cm
Package List:
1*100W Flexible Foldble Solar Panel，
1*3M wire,
1*10A 12Vcontroller,
1*English User Manual
Model:FFSP-160M
Material:Monocrystalline silicon
Maximum Power(Pmax): 160W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):9.14A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:53*49*2.8 cm
Expansion Dimension:195*53*0.6 cm/77*21*0.2 inch
Net Weight:3.3kg
Package Weight:4.5kg
Package Size: 63*50.5*4 cm
Package List:
1*160W Flexible Foldble Solar Panel，
1*3M wire,
1*10A 12Vcontroller,
1*English User Manual
Model:FFSP-220M
Material:Monocrystalline silicon
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm
Package List:
1*200W Flexible Foldble Solar Panel
1*3M wire,1*20A 12Vcontroller,
A total of 4M long cable. With alligator clips.
Cable thickness: 2x1.5 mm²

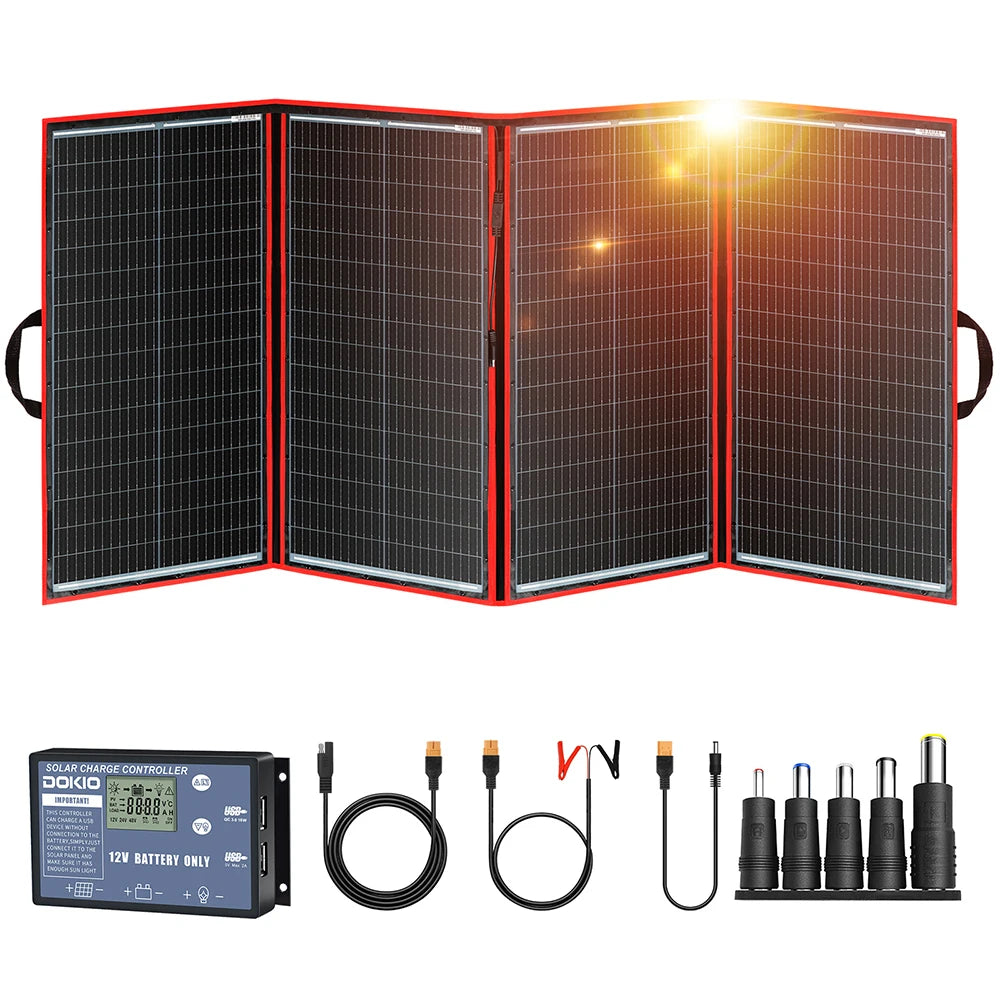

Model:FFSP-300M
Material:Monocrystalline silicon
Maximum Power(Pmax): 300W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 20.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:49*95*2.8 cm
Expansion Dimension:196*95*0.6 cm/77.2*37*0.2 inch
Net Weight:6.9kg
Package Weight:8.1kg
Package Size:105*50.5*4 cm
Package List:
1*300W Flexible Foldble Panel
A total of 4M long cable. With alligator clips，
1*20A 12Vcontroller
1*English User Manual
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
